A real world comparison between Mono, Poly, PERC and Dual PV Modules.
* This is a field test and the results are specific for this installation on this location please research which is the best solution for your own situation as the results can be different based on environmental influences.
Total solar yield as of 27/03/2023 when the results were reset:
Mono: 9158 kWh
Split-cell: 9511 kWh
Poly: 9113 kWh
Perc: 9471 kWh
Perc-east: 1970 kWh
Perc-west: 1730 kWh

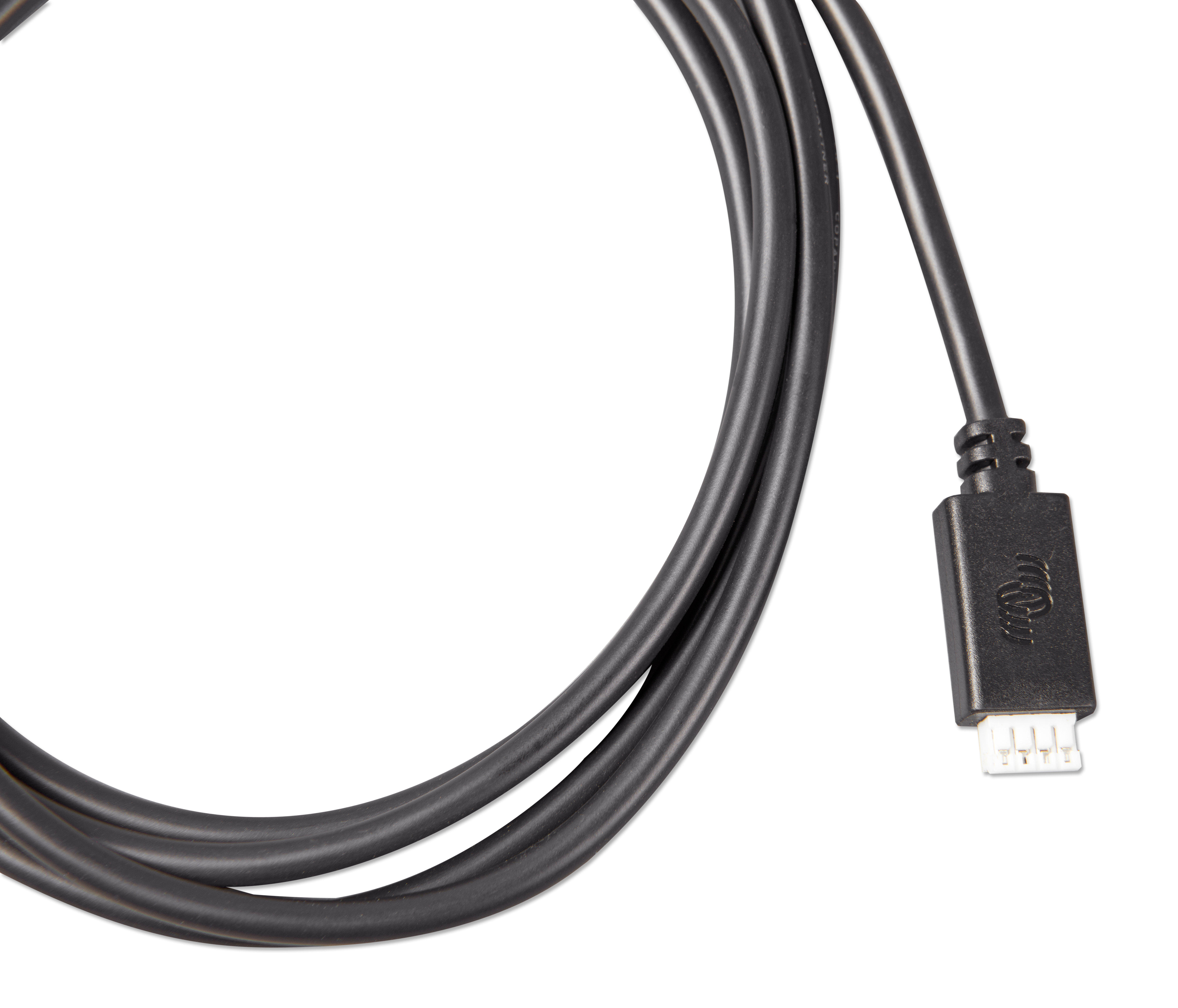

The VE.Direct TX digital output cable can be used in combination with the BlueSolar and SmartSolar MPPT chargers. It supports the following applications:
- Solar lighting applications
- Virtual load output
The cable is designed for lighting applications in solar energy systems.
Energy consumption can be significantly reduced by the ability to dim lighting when needed. Lower power consumption will reduce the overall system cost. Also, the availability of the lighting will increase, even in case of a partially charged battery in low sun.
The cable connects the TX output of the VE.Direct connector of a MPPT charger with the PWM dimmer input of the LED driver.
The cable is designed for adding load output functionality to the larger MPPT chargers (MPPT 100/30 and larger) that do not have a load output. The cable connects the TX output of the VE.Direct connector of a MPPT charger with a battery protect or a solid state relay to switch a load on or off.
